SHURE

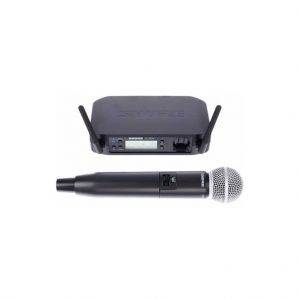

GLXD24A-SM58

  Tuning Bandwidth 2400–2483.5 MHz Working Range Indoors Up to 30 m (100 ft) typical, Up to 60 m (200 ft) maximum Outdoors Up to 20 m (65 ft) typical, Up to 50 m (165 ft) maximum

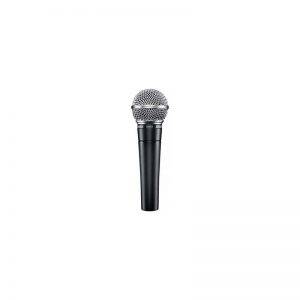

SM 58

  Type Dynamic Frequency Response 50 to 15,000 Hz Polar Pattern Cardioid Sensitivity (at 1,000 Hz Open Circuit Voltage) –54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL Impedance Rated impedance is 150Ω (300Ω actual) for connection to microphone inputs rated low impedance Polarity Positive pressure on diaphragm produces

QSC

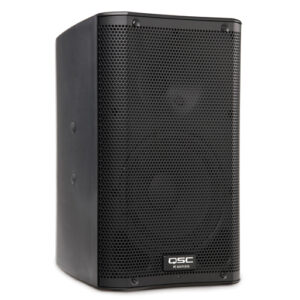

K 8

  K Series Specifications   K8 K10 K12 KSub Configuration Trapezoidal 2-way Multipurpose 2-way Multipurpose 2-way 4th Order Bandpass Transducers Low-frequency 8″ cone transducer 10″ cone transducer 12″ cone transducer 2 x 12″ cone transducers High-frequency 1.75″ diaphragm compression driver 1.75″ diaphragm compression driver 1.75″ diaphragm compression driver Frequency Response

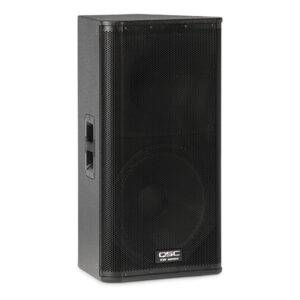

KW 152

Configuration 15″ 2-way trapezoidal SPECIFICATIONS KW152 Transducers Low-frequency Mid-frequency High-frequency 15″ cone transducer- 1.75″ diaphragm compression driver Frequency Response (-6 dB) 47 Hz to 18 kHz Frequency Range (-10 dB) 44 Hz to 20 kHz Nominal Coverage (-6 dB) 60° axisymmetric Maximum SPL1 133 dB peak Amplifier Power Output2 1000

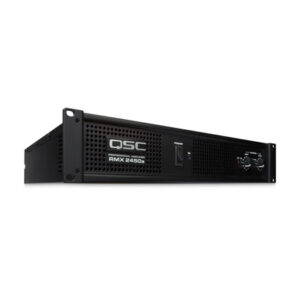

RMX 2450a

  SPECIFICATIONS for RMX 2450a RMX2450a Power Amplifier Stereo Mode (both channels driven): 8Î/ FTC 20 Hz – 20 kHz / 0.1% THD: 450W 8Î/ EIA 1 kHz / 0.1% THD: 500W 4Î/ FTC 20 Hz – 20 kHz / 0.1% THD: 650W 4Î/ EIA 1 kHz / 0.1% THD:

Allen & Heath

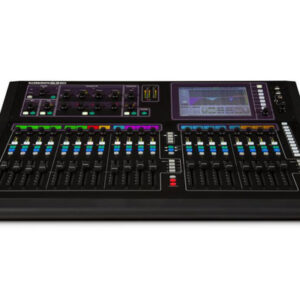

GLD 080

GLD 80 System Specifications Inputs XLR Mic/Line Inputs Balanced Mic/Line Preamp Fully recallable Input Sensitivity -60 to +15dBu Analogue Gain +5 to +60dB, 1dB steps Pad -20dB Maximum Input Level +32dBu Input Impedance >4kΩ (Pad out), >10kΩ (Pad in) Mic/Line Channel noise 20-20kHz, Direct Out @ unbalanced out Mic EIN

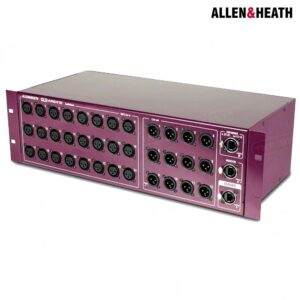

GLD AR2412

GLD Specification For V1.2 and higher firmware Inputs XLR Mic/Line Inputs Balanced, (All XLR on GLD‐80 and AudioRacks) Mic/Line Preamp Fully recallable Input Sensitivity ‐60 to +15dBu Analogue Gain +5 to +60dB, 1dB steps Pad ‐20dB Maximum Input Level +32dBu Input Impedance >4kΩ (Pad out), >10kΩ (Pad in) Mic/Line Channel

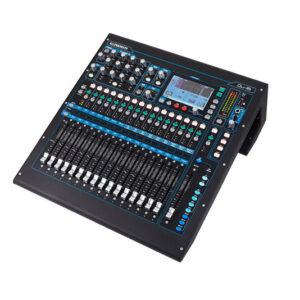

QU 16

  Technical Datasheet Overview  Rack-mountable Digital Mixer for Live, Studio and Installation  5″ colour touchscreen  16 Mono Inputs (TRS + XLR)  3 Stereo Inputs (TRS)  4 Stereo FX with dedicated FX Returns  16 Busses  12 Mix Outputs (XLR) (LR, Mono Mix 1-4, Stereo
