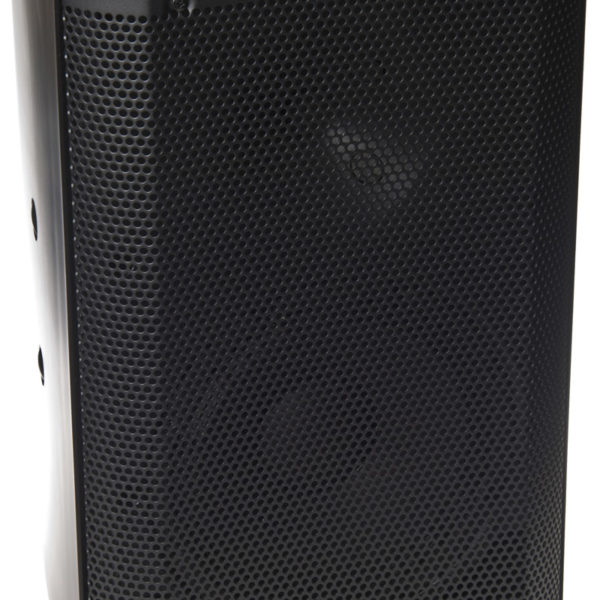

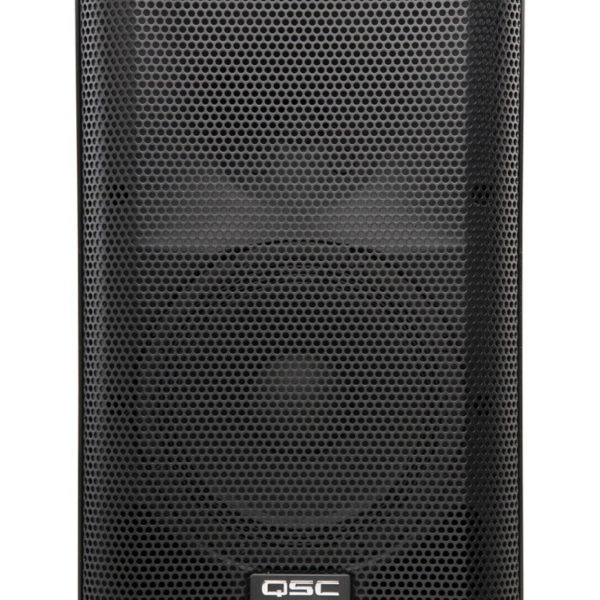

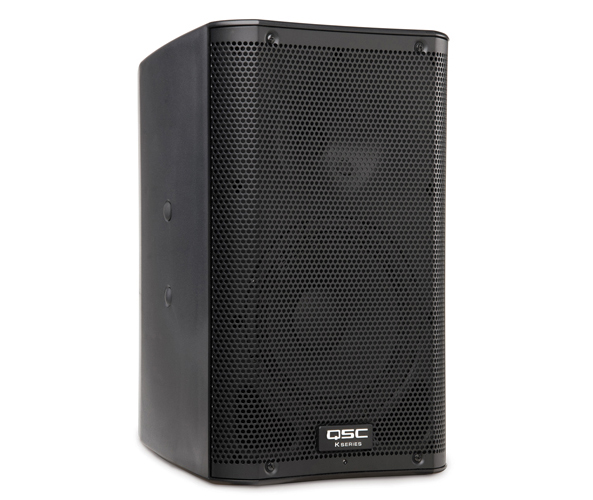

K 8

Email your friend
Category:



K Series Specifications



K8 K10 K12 KSub
Configuration Trapezoidal 2-way Multipurpose 2-way Multipurpose 2-way 4th Order Bandpass
Transducers
Low-frequency 8″ cone transducer 10″ cone transducer 12″ cone transducer 2 x 12″ cone transducers
High-frequency 1.75″ diaphragm compression driver 1.75″ diaphragm compression driver 1.75″ diaphragm compression driver
Frequency Response (-6 dB) 66 Hz – 18 kHz 60 Hz – 18 kHz 52 Hz – 18 kHz 48 Hz – 134 Hz
Frequency Range (-10 dB) 61 Hz – 20 kHz 56 Hz – 20 kHz 48 Hz – 20 kHz 44 Hz – 148 Hz
Nominal Coverage (-6 dB) 105° conical 90° conical 75° conical
Maximum SPL 1 127 dB peak 129 dB peak 131 dB peak 130 dB peak
Amplifiers
Power Output 2 1000 W continuous Class D (500 W LF, 500 W HF), 2000 W peak 1000 W continuous Class D
(2 x 500 W), 2000 W peak
Input Impedance (Ω) XLR / ¼”:40kbalanced / 20kunbalanced•XLR / ¼”MICmode:2260balanced•RCA:10k

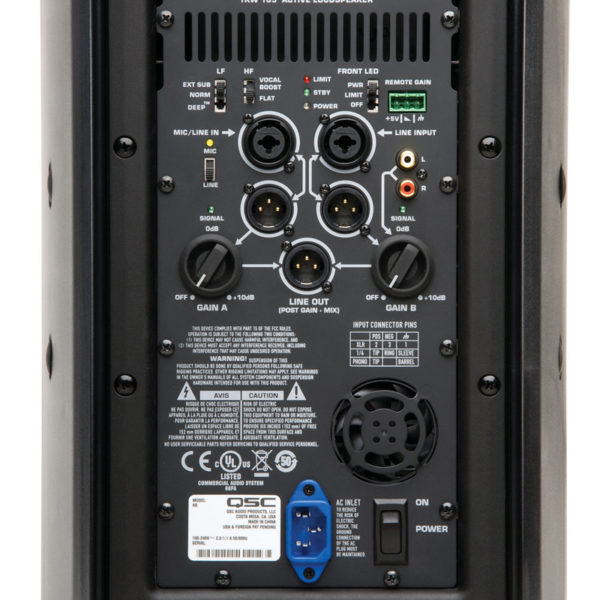

Controls Power

•GainA•GainB•Mic/Line•LFMode(ExtSub/Norm/DEEP™)•HFMode(Flat/VocalBoost)

Power•Gain•LFMode(Normal/
FrontLED(On/Off/Limit) DEEP™)•Polarity(Normal/Reverse)
•FrontLED(On/Off/Limit)
Indicators Power

•SignalA•SignalB•Standby•Limit•Mic

Power•Signal•Standby•Limit
Connectors BalancedfemaleXLR / ¼”line/miclevelinput•BalancedfemaleXLR/ ¼”linelevelinput•DualBalancedmaleXLR Dual balanced female XLR/¼” line
fullrangelinelevelout•BalancedmaleXLR“mix”out•StereoRCAlinelevelinput•Remotegaincontrol•Locking levelinput•DualBalancedmale
IECpowerconnector XLRfullrangelinelevelout•
Remotegaincontrol•LockingIEC
power connector
Cooling On demand, 50 mm variable speed fan
Amplifier Protection Thermallimiting•Outputovercurrent•Overtemperaturemuting•GuardRail™
Transducer Protection Thermallimiting•Excursionlimiting
AC Power Input Universalpowersupply100–240VAC,50–60Hz
AC Power Consumption 100VAC,2.3A•120VAC,2.01A•230VAC,1.13A
1/8 Power
Enclosure Impact resistant ABS Painted birch plywood
Finish Black Paint Black textured paint
Grille  Black powder coated 18 gauge steel
Dimensions (HWD) 17.7″ x 11″ x 10.6″ 20.4″ x 12.6″ x 11.8″ 23.7″ x 14″ x 14″ 26″ x 14″ x 28.1″ (including casters)
450 mm x 280 mm x 269 mm 519 mm x 320 mm x 300 mm 603 mm x 356 mm x 356 mm 665 mm x 356 mm x 714 mm
Weight (Net) 27 lb (12.2 kg) 32 lb (14.5 kg) 41 lb (18.6 kg) 74 lb (33.6 kg)
