Showing 1–12 of 13 results
CVB
Specifications Cartridge Type Electret Condenser Polar Pattern CVB/O Omnidirectional CVB/C Cardioid Frequency Response 70–16000 Hz Output Impedance 180 Ω Sensitivity open circuit voltage, @ 1 kHz, typical CVB/O –28 dBV/Pa[1] (40 mV) CVB/C –32.5 dBV/Pa[1] (23 mV) Maximum SPL[2] 1 kHz at 1% THD CVB/O 117 dB SPL
CVL-B-C TOG
CVL Specifications Type Electret Condenser Frequency Response 50 to 20,000 Hz Polar Pattern Unidirectional (Cardioid) Output Impedance @ 1 kHz, typical 600 Ω Audio Output Level -43.5 dBV/Pa Signal-To-Noise Ratio[1] @ 1 kHz 72 dB Maximum SPL[1] 1000 Ω load, @ 3% THD 139.0 dB Dynamic Range[1] @ 1
MX 153 T-O
Transducer Electret Condenser Polar Pattern Omnidirectional Frequency Response 20Hz to 20kHz Sensitivity Open circuit voltage, @ 1kHz, typical: -41dBV/Pa (9 mV/Pa) Maximum Input Sound Level 1kHz at 1% THD: 2500 Ω load: 107 dB SPL 1000 Ω load: 107 dB SPL Signal-to-Noise Ratio 60dB Dynamic Range (Typical) @ 1kHz 2500

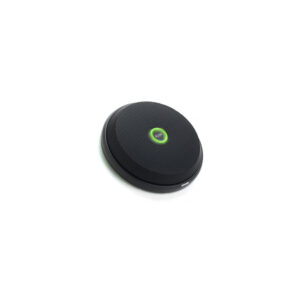

MX 396-C-TRI
Type Condenser (electret bias) Frequency Response 50 to 17000 Hz Polar Pattern MX396/C-DUAL: 2 x Cardioid MX396/C-TRI: 3 x Cardioid lmpedance EIA Rated at 150 Ohms (170 Ohms actual) Phantom power required? MX396/C-DUAL: 48–52 Vdc phantom, 10.0 mA MX396/C-TRI: 48–52 Vdc phantom, 12.0 mA MX 396/C – TRI Specification
MX 418 D-S
SPECIFICATIONS Frequency Response (Figure 1) 50 to 17,000 Hz Polar Pattern (Figure 2) Output Impedance (at 1,000 Hz) Rated at 150 Ω (180 Ω actual) Open Circuit Sensitivity At 1 kHz, ref. 1 V per Pascal* Cardioid: –33.5 dBV (21.1 mV) Supercardioid: –32.5 dBV (23.7 mV) Omnidirectional: –28.0 dBV
