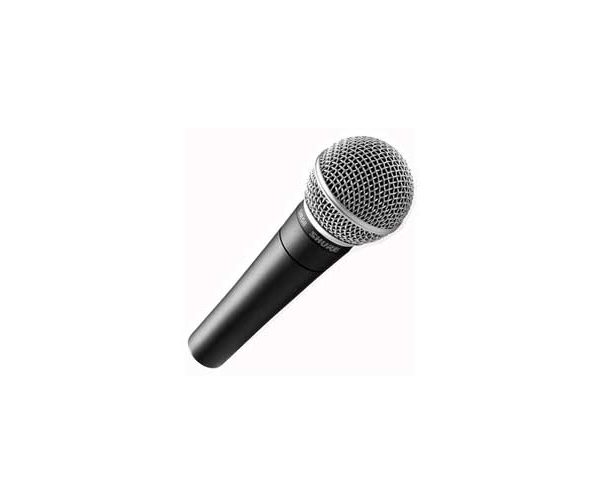

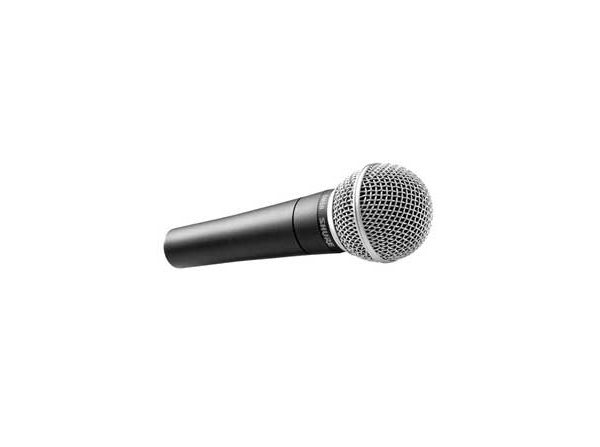

SM 58

Email your friend
Category:



Type Dynamic
Frequency Response 50 to 15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1,000 Hz Open Circuit Voltage) –54.5 dBV/Pa (1.85 mV) 1 Pa = 94 dB SPL
Impedance Rated impedance is 150Ω (300Ω actual) for connection to microphone inputs rated low impedance
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
Case Dark gray, enamel-painted, die cast metal; matte-finished, silver colored, spherical steel mesh grille
Connector Three-pin professional audio connector (male XLR type)
Net Weight 298 grams (10.5 oz)
Dimensions 162 mm (6-3/8 in.) L x 51 mm (2 in.) W
