KV 2 Audio Compex Specification

  • Depth : 201 mm
  • Depth : 7.91 in
  • Height : 44.50 mm
  • Height : 1.75 in
  • Width : 483 mm
  • Width : 19.02 in
  • AC Voltage : 230 Volts
  • Product Weight : 2.70 kg
  • Product Weight : 5.95 lbs
  • Certifications : CE
  • Minimum Frequency Response (Bandwidth) : 20 Hz
  • Minimum Frequency Response (Bandwidth) : 0.02 kHz
  • Maximum Frequency Response (Bandwidth) : 100000 Hz
  • Maximum Frequency Response (Bandwidth) : 100 kHz
  • Dynamic Range : 130 dB
  • Signal to Noise Ratio : 110 dB
  • Number of Inputs : 2
  • Number of Outputs : 2
  • Total Harmonic Distortion + Noise (THD+N) : 0 %
  • Rack Units (Height) : 1
  • Number of Audio Channels : 2
  • Rackmountable : Yes
  • Input Impedance : 20000 ohm
  • Output Impedance : 50 ohm
  • AC Voltage (Minimum) : 180 Volts
  • AC Voltage (Maximum) : 260 Volts
  • Net Weight : 2.70 kg
  • Net Weight : 5.95 lbs

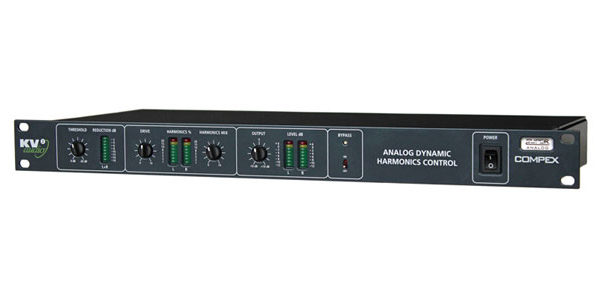

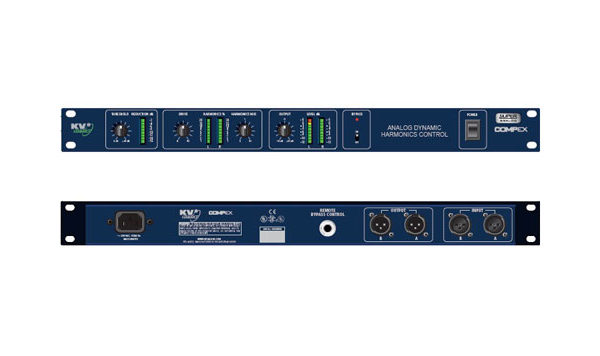

KV2 Audio Compex

System Acoustic Perfomance

-3dB Response 20Hz ÷ 100kHz
Dynamic Range >130dB
Channel Crosstalk 90dB
Signal to Noise Ratio 110dB
Total Harmonic Distortion 0,001%

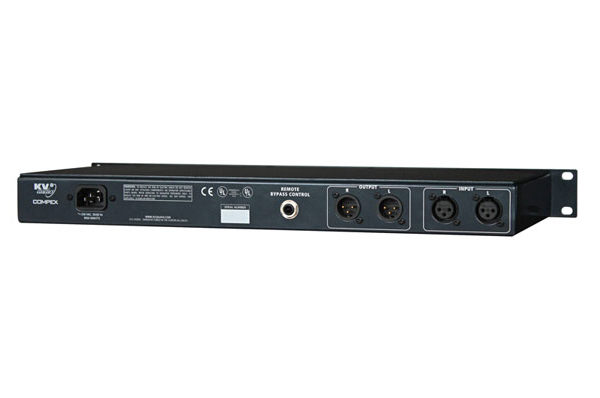

Signal Input

Input Channels 2
Input Impedance 20kΩ (balanced)
Line input XLR

Signal Output

Output Channels 2
Output Impedance 50Ω
Line Output XLR

Features

Level Control -10 / +10dB
System setup Bypass (remote controlled)
Harmonics Drive, 0 ÷ 10
Equalization Level dependent
Indicators 2x 2 Level LED bar graphs

Compressor

Threshold ∞ ÷ -20dB
Ratio 1:3
Indicactors 1x LED bar graphs

Harmonics

Range 0 ÷ 10

Power

Power Connector IEC 320
Operating Voltage 115V / 230V
Operating Voltage Range 90÷[email protected] | 180÷[email protected]

Physical Dimensions

Height 44.5mm (1.75″)
Width 483mm (19.0″)
Depth 201mm (7.9″)
Weight 2,7kg (5.96lbs)
