LSR4328P

Email your friend
Category:

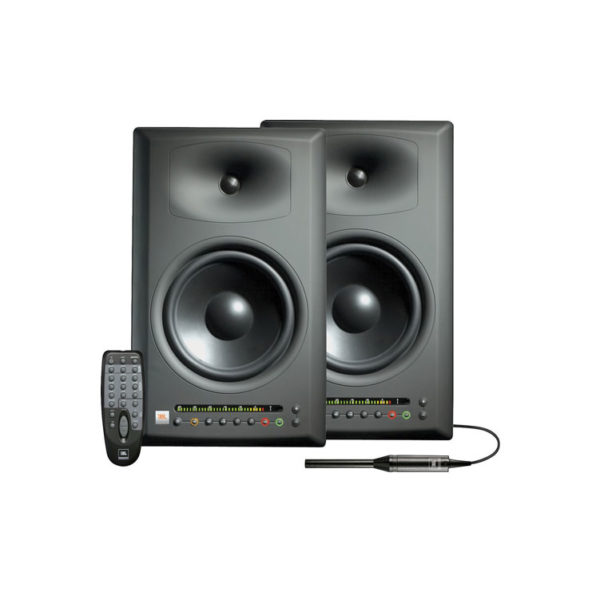

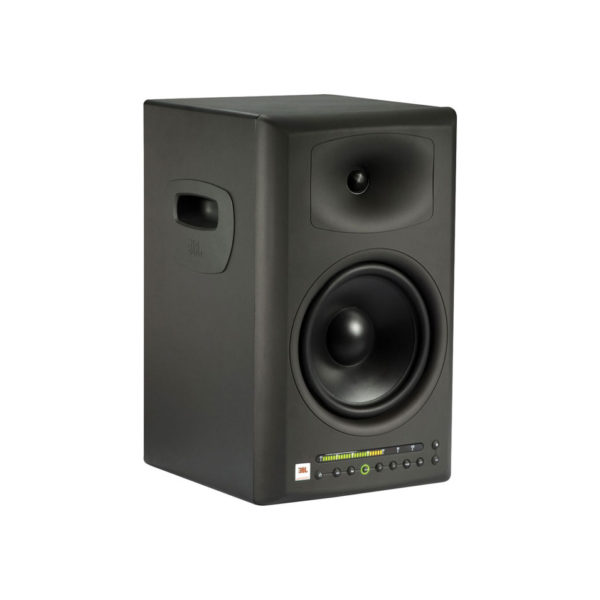

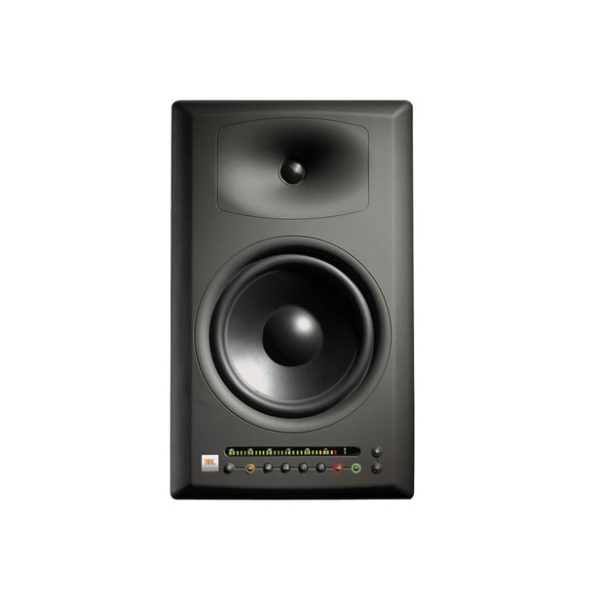

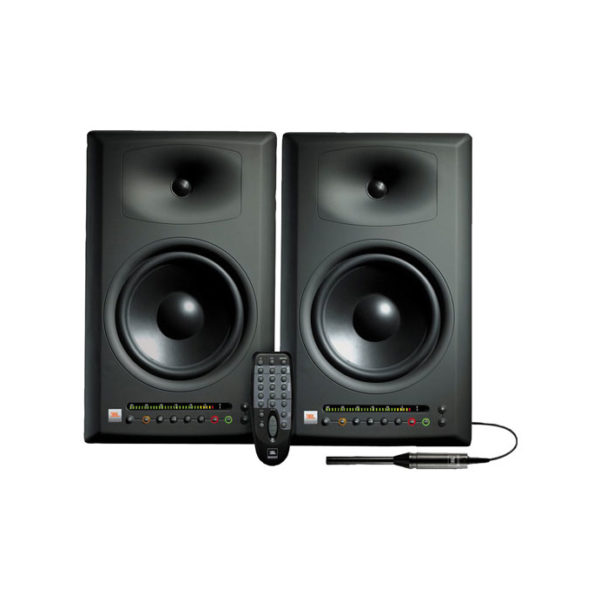

JBL LSR4328P – speakers

Part Number: LSR4328P PAK

General

  • Additional Features Room Mode Correction (RMC), bi-amplified, integrated

carrying handles

  • Manufacturer Harman

Speaker System

  • System Components                           2 speakers
  • Amplification Type                             active
  • Crossover Channel Qty                       2-way
  • Nominal Output Power                       220 Watt
  • Frequency Response                           50 – 20000 Hz
  • -3dB Frequency Response                  43 Hz
  • Output Level (SPL)                            106 dB
  • Sensitivity                                           96 dB
  • Crossover Frequency                          2200Hz
  • Magnet Type                                       neodymium
  • Audio Amplifier                                 integrated
  • Magnetic Shield                                  Yes
  • Connectivity Technology                    wired
  • Controls                                              input selector, input sensitivity, power on/off

Power Device

  • Power Source                                      AC power adapter

Audio System

  • Type                                                    speakers

Header

  • Brand                                                  JBL
  • Product Line                                       JBL
  • Model                                                  LSR4328P
  • Packaged Quantity                             1

Miscellaneous

  • Color                                                   dark graphite
  • Color Category                                   black
  • Body Material                                     MDF

Speaker System Details

  • Speaker Type                                      speaker
  • Speaker Qty                                        2
  • Nominal (RMS) Output Power           220 Watt
  • Frequency Response                           50 Hz
  • Connectivity Technology                    wired
  • Crossover Channel Qty                       2-way

Driver Details (1st speaker)

  • Speaker Type                                      speaker
  • Driver Type                                         tweeter driver, woofer driver
  • Driver Qty                                           1
  • Driver Diameter                                  1 m, 8 m
  • Driver Diameter (metric)                     203 mm, 25 mm
  • Driver Magnet Type                            neodymium
  • Driver Material                                    polymer coated paper fiber, silk

Connections

  • Type

AES/EBU input, AES/EBU output, USB, audio input, balanced audio input, digital audio input (coaxial), digital audio output (coaxial), microphone, network

  • Qty                                          2
  • Connector Type                      4 pin USB Type B, RCA phono, RJ-45, XLR, mini-phone
          • 3.5 mm, phone 6.35 mm

Dimensions & Weight

  • Width                                                  10.5 in
  • Depth                                                  10.6 in
  • Height                                                             17.2 in
  • Weight                                                28.88 lbs

General

  • Manufacturer                                      Harman
