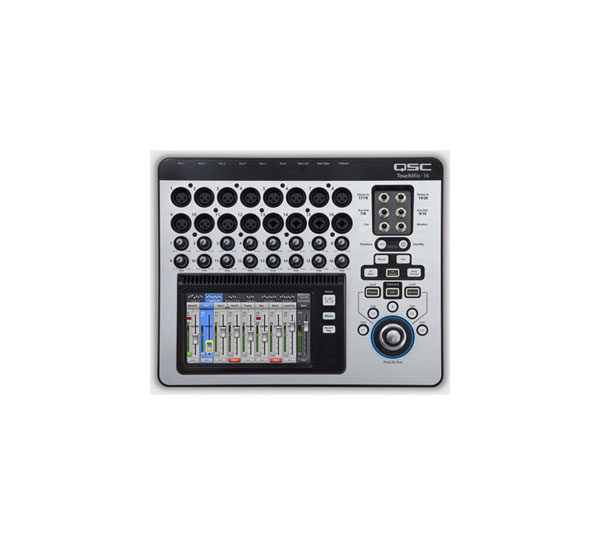

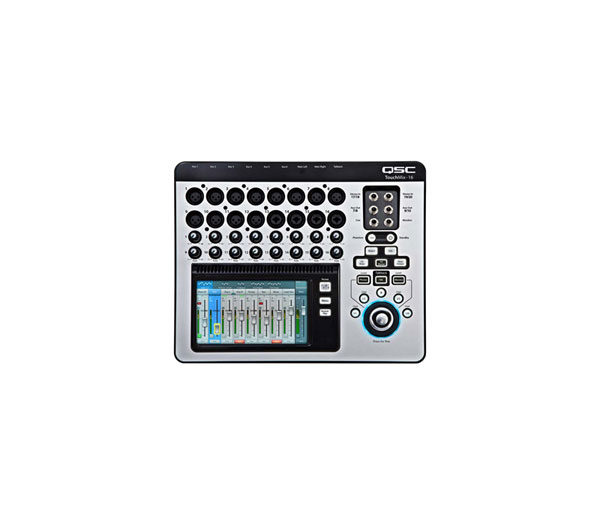

Touchmix 16

Email your friend
Category:

TouchMix-8 | TouchMix-16 Specifications



TouchMix-8 TouchMix-16
DIsplay (both models) 6.1” x 3.5” (156mm x 90mm) color TFT, touch sensing.
Inputs (Mic/Line) 12 Total:

4, XLR/TRS combo4, XLR2 Stereo, 1/4” TRS

20 Total:

4, XLR/TRS combo12, XLR2 Stereo, 1/4” TRS

Input (Talkback) N/A 1, XLR
Outputs 2 Main, XLR, line-level4 Auxes, XLR, line-level 1 Stereo TRS, (Line or In Ear Monitor, 16 ohm min. impedance)1 Stereo Cue, TRS, (Line or headphone, 16 ohm min. impedance) 2 Main XLR, line-level6 Auxes: XLR, line-level2 Stereo auxes: TRS, (Line or In Ear Monitor, 16 ohm min. impedance)1 Stereo Monitor, TRS, (Line or headphone, 16 ohm min. impedance)1 Stereo Cue, TRS, (Line or headphone, 16 ohm min. impedance)
Mic& Line Input Channel Processing 4-band parametric EQ with Hi/Low shelving option • variable 24db/octave Low-cut & High-cut filters • Gate • Compressor
2-Track (USB) & FX Return Processing 2-band shelving EQ • variable 24db/octave Low-cut • Gate • Compressor
Output Channel Processing Main outputs and auxes 1–6: 1/3 octave GEQ • Limiter • 4 full-frequency notch filters • Variable 18dB/oct Low-cut and High-cut filtersAuxes 7/8 & 9/10 (TM-16 only): 4-band PEQ, Limiter • Additional variable 18dB/oct Low-cut and High-cut filters
Recording 1 14 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM 22 tracks, requires USB 3.0 HD • FAT32 format • minimum 7800 RPM
Groups 8 DCA groups (with mutes) • 8 Mute groups
Cue Selectable AFL or PFL
Effects 4 professional effects engines configurable as reverb (2 types) • pitch shift • mono delay • stereo delay • chorus.1 Pitch Correct (assignable to any mono input channel)
Scene and Preset Memory Scenes: 130 user-defined scenes, including all mixer parameters may be stored internally or on FAT32 formatted USBChannel and FX Presets: 130 user-defined channel presets and 130 FX presets may be stored internally or on FAT32 formatted USB
External Control 2 iOSTouchMix app for iPad, iPad mini, iPad Air. Control via Wi-Fi provides access to all mixer functions. Requires iOS 6 or higher.
Wi-Fi 3 USB Wi-Fi adapter included
Dimensions (HWD) 56 mm x 333 mm x 245 mm 2.2” x 13.1” x 9.6” 58 mm x 360 mm x 291 mm 2.3” x 14.2” x 11.5”
Weight 4.3 lb (1.95 kg) 5.9 lb (2.98 kg)
Line Voltage Requirements 100 – 240 VAC, 50 – 60 Hz
Sampling Frequency Selectable 44.1kHz or 48kHz
Internal Processing 32-bit floating point
Latency <1.6msec, any input to any output
THD <0.005%, +4 dBu, 20 Hz – 20 kHz, unity gain, any input to any output
Frequency Response 20 Hz – 20 kHz +/-0.5 dB, any input to any output
Dynamic Range 105 dB
Equivalent Input Noise -126 dBu
Residual Output Noise -86 dBu
Crosstalk -80 dB
S/N Ratio -94 dB
Maximum Input Level +16 dBu (Mic/Line inputs, XLR), +26 dBu (Mic/Line inputs, TRS), +22 dBu (Stereo inputs)
Phantom Power 48V, individually switchable per channel
Included Accessories USB WiFI adapter, Soft Carrying Case, Power Supply
