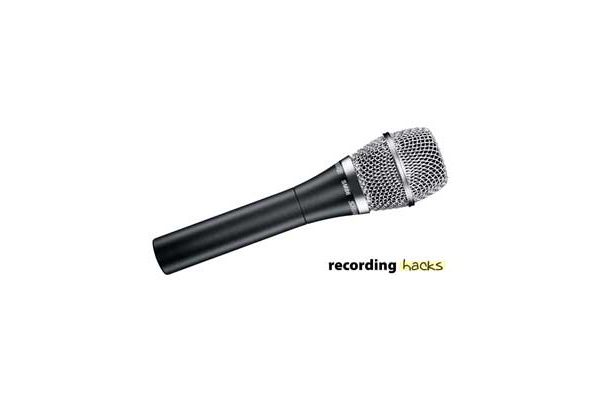

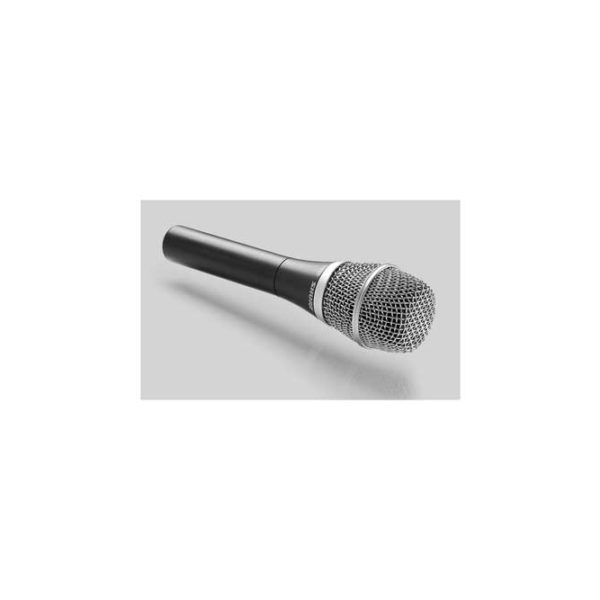

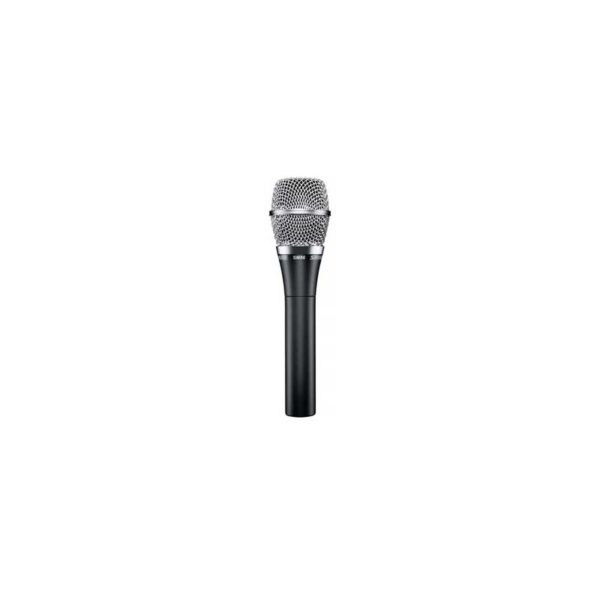

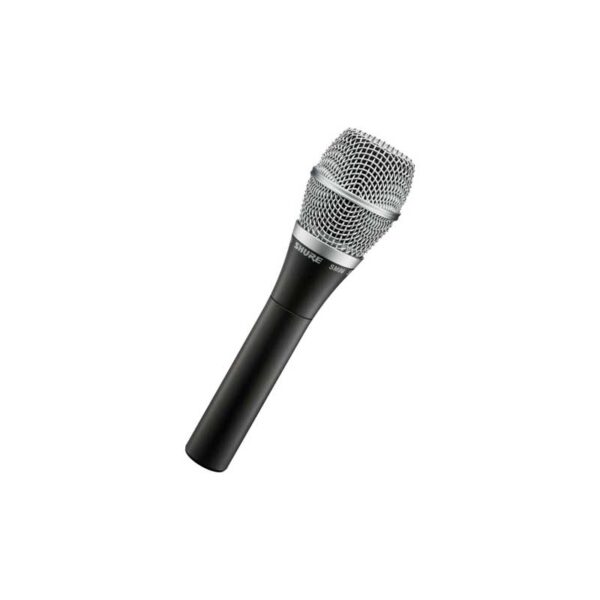

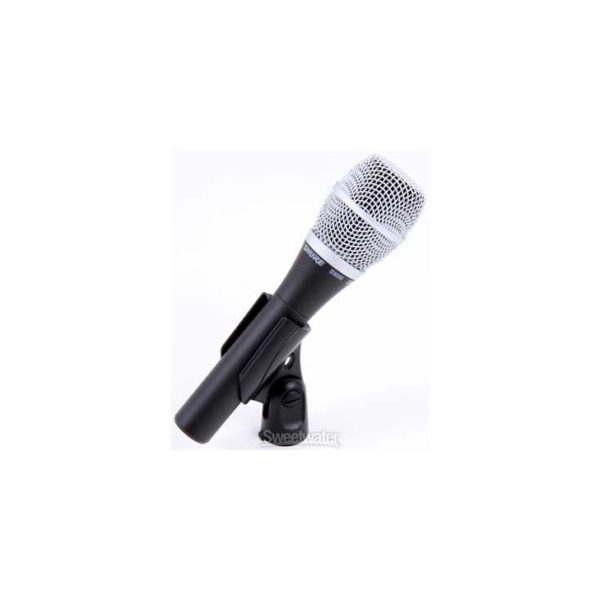

SM 86

Email your friend
Category:



Type Condenser
Frequency Response 50 to 18,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1,000 Hz) Open Circuit Voltage: -50 dBV/Pa (3.15 mV) (1 Pa = 94 dB SPL)
Impedance 150 Ohms at 1 kHz Recommended minimum load impedance: 600 Ohms
Output Clipping Level 1000 Ohm Load at 1,000 Hz: +3 dBV (1.41 V)
Maximum SPL (at 1,000 Hz) 1000 ohm load (1% THD): 147 dB
Self-Noise 23 dB typical, A-weighted
Dynamic Range (1000 ohms) 124 dB (maximum SPL to A-weighted noise level)
Signal-to-Noise Ratio 71 dB at 94 dB SPL (IEC 651) S/N ratio is difference between 94 dB SPL and equivalent SPL of self-noise A-weighted.
Polarity Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of the output connector.
Power Requirements 11 to 52 Vdc, 5.2 mA
Case Dark gray, enamel-painted, die-cast with a stainless steel grille
Connector Three-pin professional audio connector (male XLR type)
Net Weight 284 grams (10 oz)
Dimensions 183 mm (6-3/16 in.) L x 49 mm (1-1/4 in.) W at the widest point
