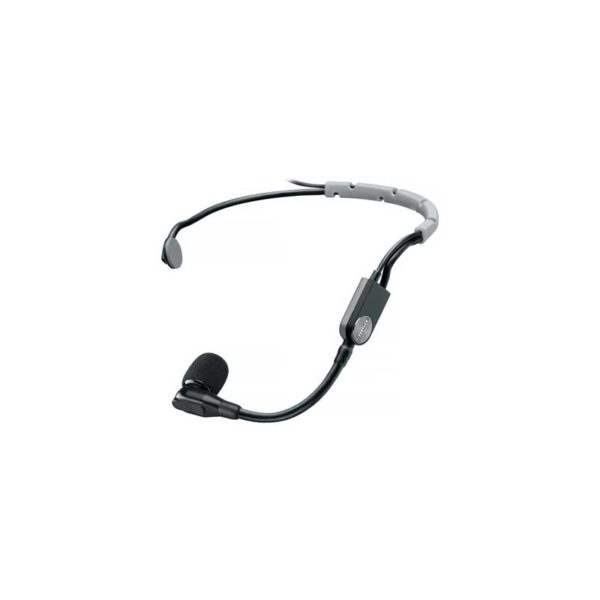

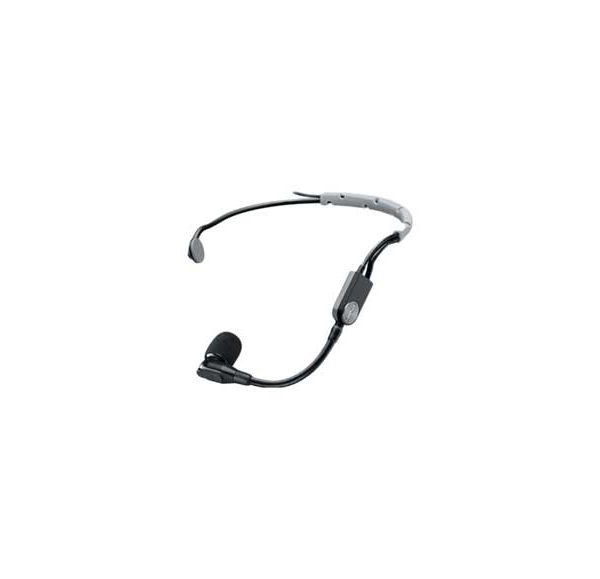

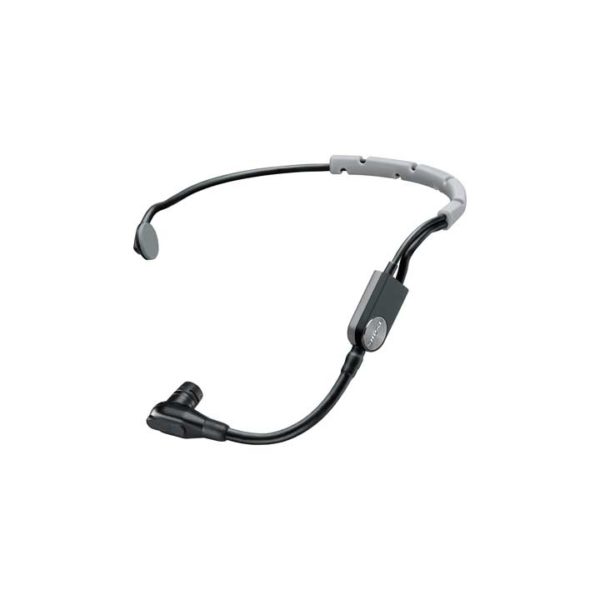

SM 35 TQG

Email your friend
Category:



Type Electret Condenser
Frequency Response 40 Hz to 20,000 Hz
Polar Pattern Unidirectional (Cardioid)
Output Impedance 2400 Ω
@ 1 kHz
Audio Output Level -59.0 dBV/Pa
Signal-To-Noise Ratio[1] 55 dB
@ 1 kHz
Maximum SPL[1] 153.0 dB
1000 Ω load, @ 1% THD
Dynamic Range[1] 114.0 dB
@ 1 kHz, 1000 Ω load
Equivalent Output Noise[1] 39 dB
Typical, A-Weighted
Power Requirements +5 V DC (nominal), 10 V maximum (DC bias)
Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable 1.1 m (45 in.)
Connector TA4F
Net Weight 72 g (2.53 oz.)
