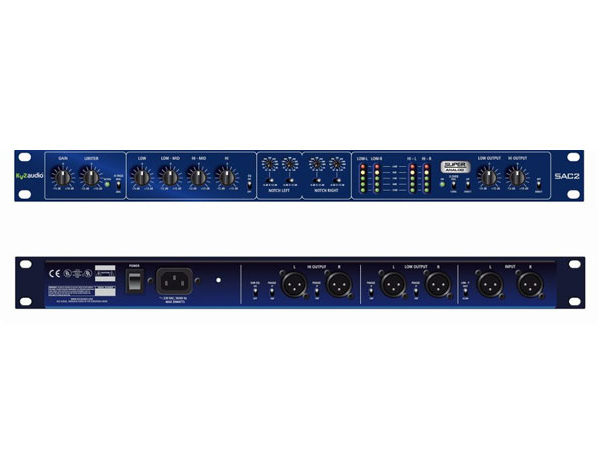

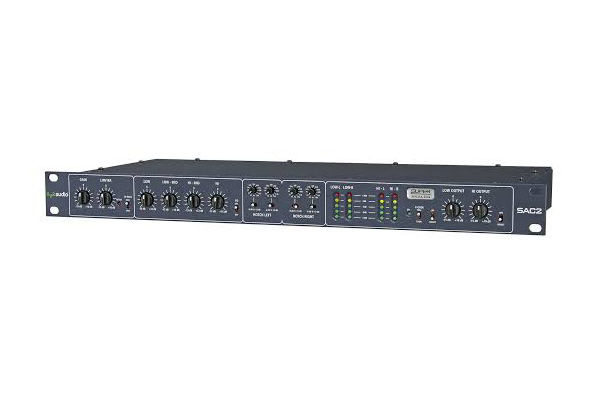

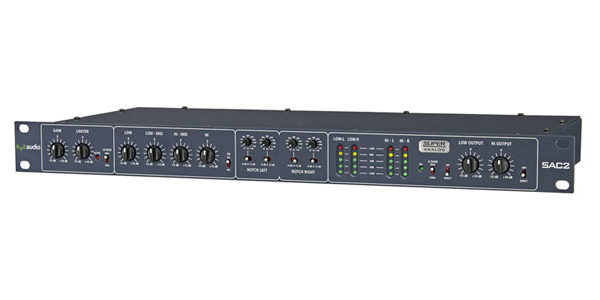

KV2 Audio SAC2 Specification
System Acoustic Perfomance
-1dB Response | 20Hz ÷ 40kHz |
Dynamic Range | >115dB |
Channel Crosstalk | >60dB |
Total Harmonic Distortion | <0.005% |
Output Channels
Max. Output Voltage | 14V / 7V (50Ω) RMS |
Max. Output Current | 450mA |
Signal Input
Input Channels | 2 |
Input Impedance | 20kΩ (balanced) |
Line input | XLR |
Signal Output
Output Channels | 4 |
Output Impedance | 50Ω |
Features
Level Control | -15 / +10dB |
System setup | Crossover / Bypass |
Gain | -10 / +10dB |
Phase | 0° / 180° |
Crossover | 70 / 120Hz, Butterworth 12dB/octave |
High Pass Filter | 20 / 40Hz |
Equalization | 4-band equalizer |
Notch Filter | 2 per channel |
Loudness bass enhancement | +6dB @ 60Hz |
Volume Limiter | Fast/Slow / -15 + 10dB |
Indicators | 4x LED bar graphs |
Power
Power Connector | IEC 320 |
Operating Voltage | 115V / 230V |
Operating Voltage Range | 90÷[email protected] | 180÷[email protected] |
Physical Dimensions
Height | 44.5mm (1.75″) |
Width | 483mm (19.0″) |
Depth | 201mm (7.9″) |
Weight | 3.2kg (7.05lbs) |
