SPECIFICATIONS for RMX 2450a

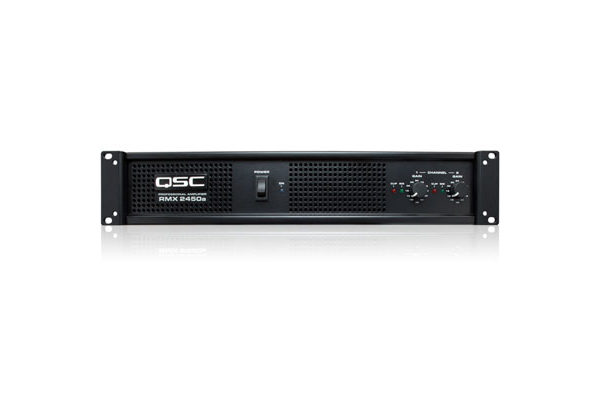

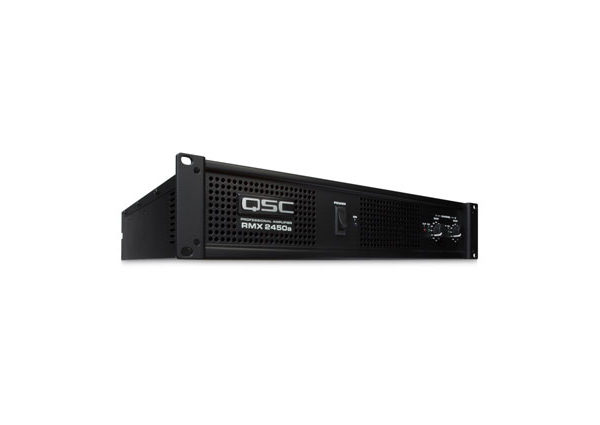

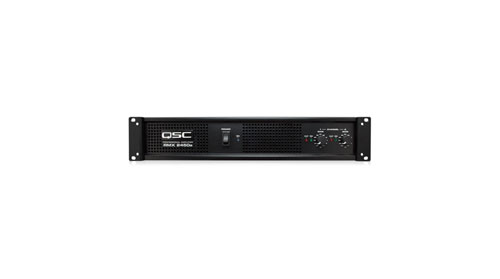

RMX2450a Power Amplifier

  • Stereo Mode (both channels driven):
    8Î/ FTC 20 Hz – 20 kHz / 0.1% THD: 450W
    8Î/ EIA 1 kHz / 0.1% THD: 500W
    4Î/ FTC 20 Hz – 20 kHz / 0.1% THD: 650W
    4Î/ EIA 1 kHz / 0.1% THD: 750W
    2Î/ FTC 20 Hz – 20 kHz / 1% THD: —
    2Î/ EIA 1 kHz / 1% THD: 1200WBridge-Mono Mode
    8Î/ FTC 20 Hz – 20 kHz / 0.1% THD: 1300W
    8Î/ EIA 1 kHz / 0.1% THD: 1500W
    4Î/ EIA 1 kHz / 1% THD: 2400
    Signal to Noise (20 – 20 kHz) 8Î: > -100 dB
    Distortion (SMPTE-IM): <0.02%
    Input Sensitivity at 8Î: 1.23V (+4.0 dBu)
    Voltage Gain: 50X (34dB)
    Output Circuitry: 2-tier Class H
    Power Requirements: 6.3A
    Typical, 1/8 power pink noise at 4Î*: 15.6A
    Supplied Plug Type, 100/120V: NEMA 5-15
    Supplied Plug Type, 230V: CEE7/7
    Weight: 44.5lb
    Frequency Response : 20 Hz – 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bypassed / 8Î)Damping Factor (1 kHz and below)
    Input Impedance: 10K ohms unbalanced, 20K ohms balanced
    Input Clipping: 10 Vrms (+22 dBu)
    Cooling: Continuously variable speed fan, back-to-front air flow
    Connectors (each channel): Input: Active balanced / 3-pin Euro-style detachable terminal block and XLR (pin 2+)
    Controls: Front: AC switch / Ch. 1 & 2 gain knobs
    Rear: 10-position DIP switch
    Indicators: Power-on: Green LED / Signal: Yellow LED (1 per channel) / Clip: Red LED (1 per channel) | Protect: Red LED
    Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads
    Load Protection: Turn-on/off muting / AC coupling (850, 1450) / Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
    Dimensions: 3.5″ (8.9 cm) tall / 2 rack spaces
    Power Requirements: 100, 120, 230 VAC, 50 – 60 Hz (factory configured)
