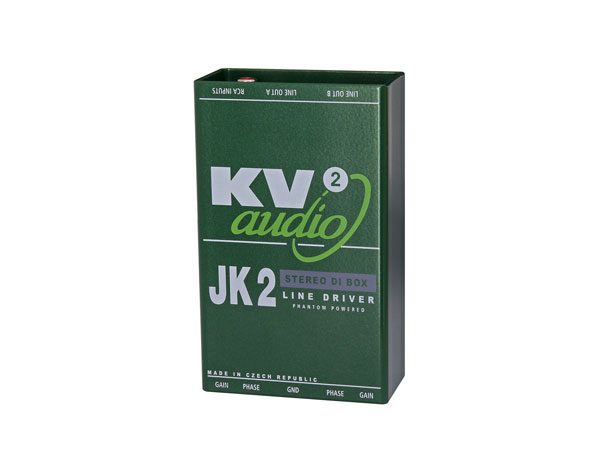

JK 2 Specification Sheet
System Acoustic Performance
| -1dB Response | 10Hz to 40kHz |
| Dynamic Range | >130dB |
| Total Harmonic Distortion | <0.005% |

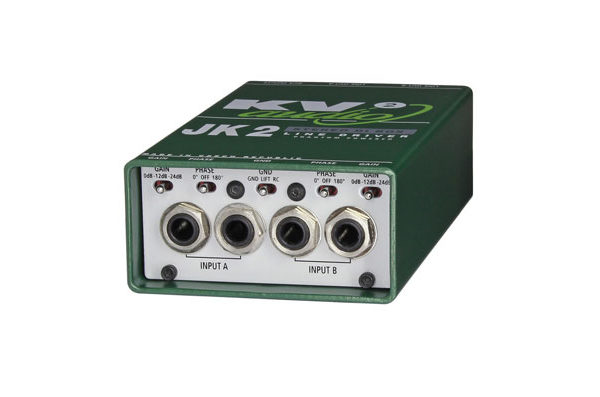

Signal Input
| Input Channels | 2x 1/4″ Jack + 2x RCA |
| Input Impedance | 2x 1MΩ / 10KΩ |
| Max. Input voltage | 1V / 5V / 20V peak |

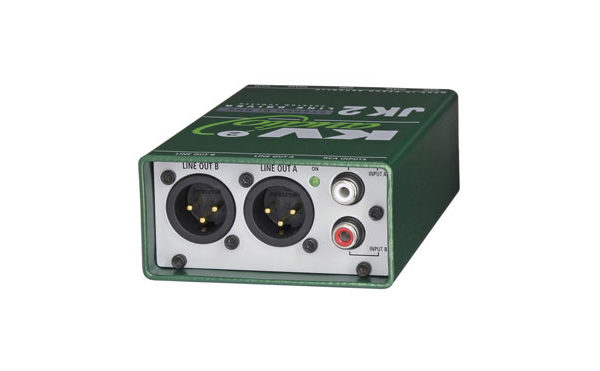

Signal Output
| Signal Output Channels | 2x XLR, 2x 1/4″ Jack THRU |
| Output Impedance | 50Ω |
Features
| Gain | 0 / -12 / -24dB |
| Phase | 0° / 180° |
| Indicators | Power-ON LED |
| Ground Mode | GND / Lift / RC |
Power Requirements
| Phantom Power | 48 to 56V / 8mA |
Physical Dimensions
| Height | 40 mm (1.57″) |
| Width | 80 mm (3.15″) |
| Depth | 131 mm (5.16″) |
| Weight | 630 g (1.39lbs) |
