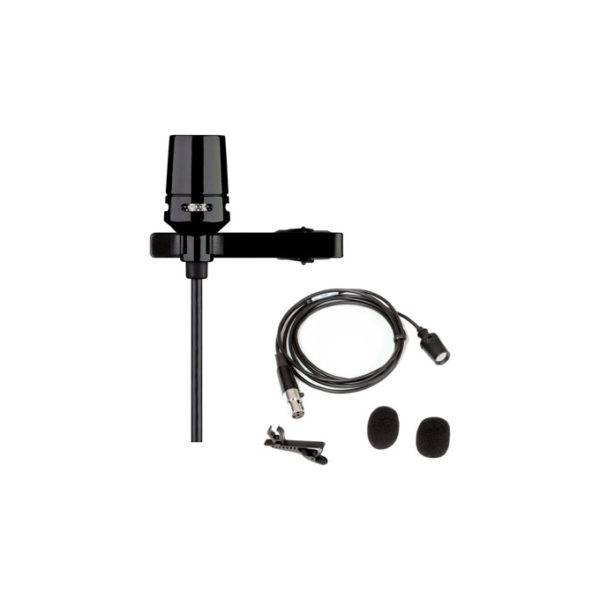

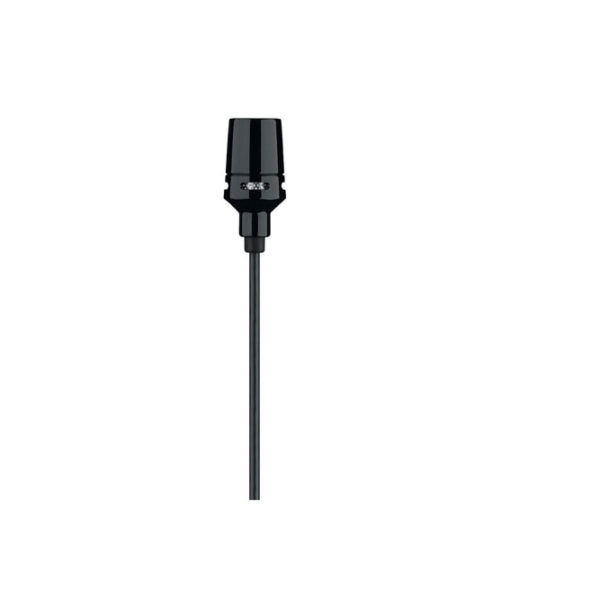

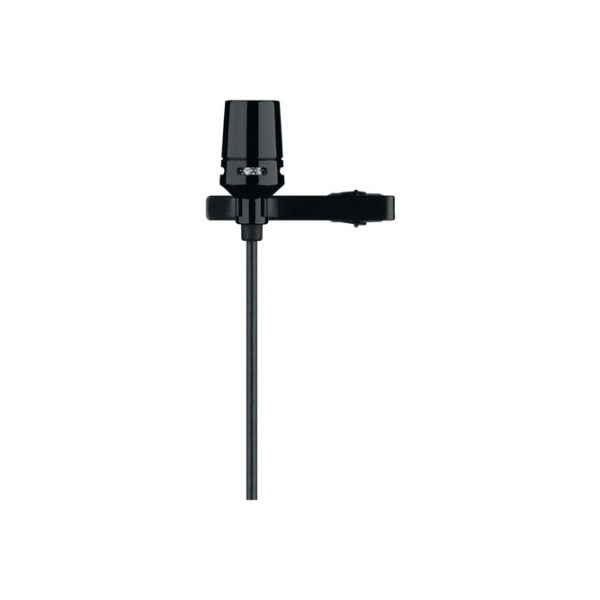

CVL-B-C TOG

Email your friend

CVL  Specifications



Type Electret Condenser
Frequency Response 50 to 20,000 Hz
Polar Pattern Unidirectional (Cardioid)
Output Impedance

@ 1 kHz, typical

600 Ω
Audio Output Level -43.5 dBV/Pa
Signal-To-Noise Ratio[1]

@ 1 kHz

72 dB
Maximum SPL[1]

1000 Ω load, @ 3% THD

139.0 dB
Dynamic Range[1]

@ 1 kHz, 1000 Ω load

117.0 dB
Equivalent Output Noise[1]

Typical, A-Weighted

22 dB
Power Requirements +5 V DC (nominal), 10 V maximum (DC bias)
Polarity Positive pressure on diaphragm produces positive voltage on pin 3 with respect to pin 1
Cable 1.3 m (50 in.)
Connector TA4F
Net Weight 25 g (0.88 oz.)
