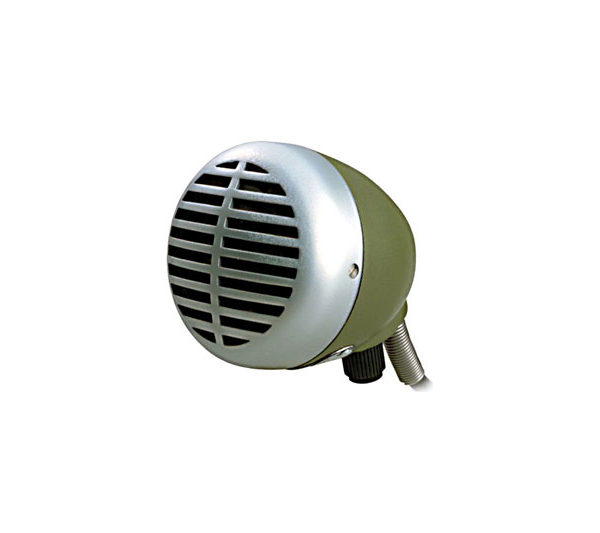

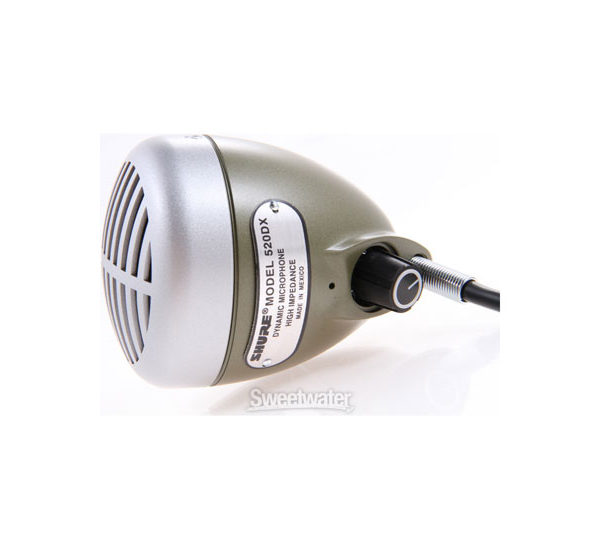

SHURE 520DX  SPECIFICATIONS

Type                                                       Dynamic

Frequency Response                           100 to 5,000 Hz

Polar Pattern                                          Omnidirectional

Impedance                                             High, unbalanced

Load Impedance Range                       Minimum: 100 kΩ

Output Level (at 1,000 Hz)                     Open Circuit Voltage –38.0 dBV/Pa (13 mV)1 Pa = 94 dB SPL

Polarity                                                   Positive sound pressure on diaphragm pro-duces positive voltage on tip with respect

to sleeve (ground) of microphone output one plug connector

Cable                                                      6.1 m (20 ft) two conductor shielded with standard 1/4-inch phone plug attached (sup-

plied wired for high-impedance, unbalanced connection)

Case                                                       Green and chrome finished die casting

Dimensions                                           63 mm (2.5 in) max diameter, 82.6 mm (3 1/4 in) long

Net Weight (with cable)                        737 grams (26 oz)
